8-bit Parity Detector (XOR Tree)

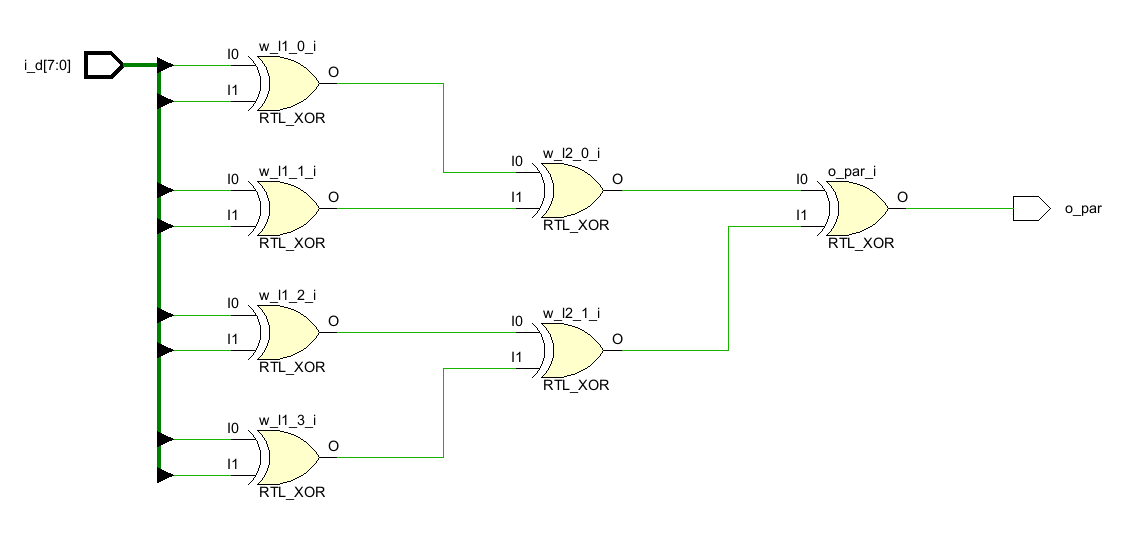

Beginnero_par is 1 when the number of 1 bits in i_d(7:0) is odd. The schema imposes an XOR tree (4 XOR level 1, 2 XOR level 2, 1 XOR level 3).
Scroll: zoom
Chargement…
o_par is 1 when the number of 1 bits in i_d(7:0) is odd. The schema imposes an XOR tree (4 XOR level 1, 2 XOR level 2, 1 XOR level 3).
