4:1 Mux from 2:1 Muxes

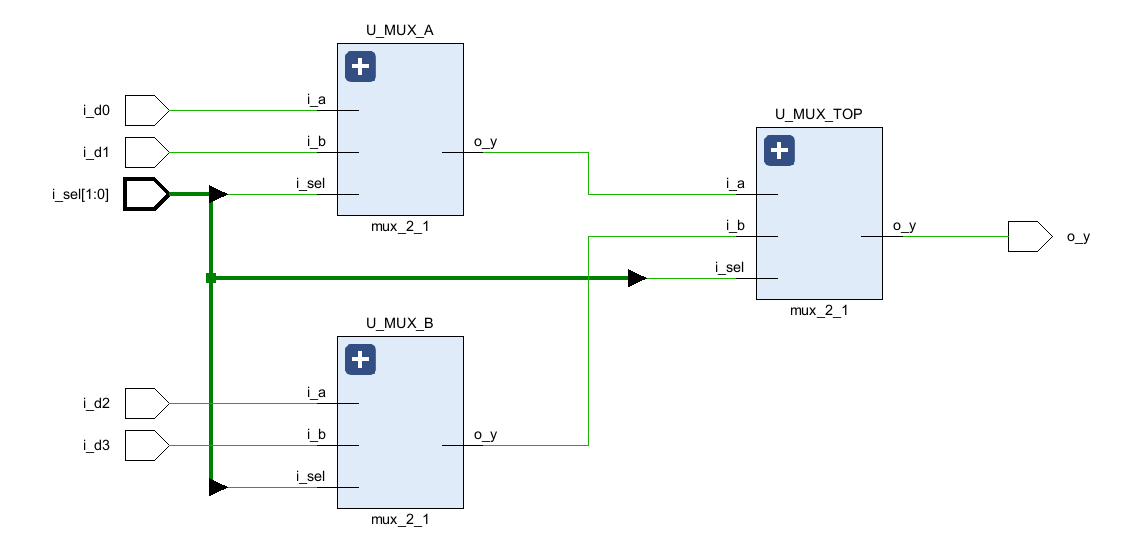

BeginnerModule mux_4_1 selects one of i_d0, i_d1, i_d2, i_d3 based on i_sel(1:0) and outputs it on o_y. The required structure: three mux_2_1 wired as a tree.
Scroll: zoom
Chargement…
Module mux_4_1 selects one of i_d0, i_d1, i_d2, i_d3 based on i_sel(1:0) and outputs it on o_y. The required structure: three mux_2_1 wired as a tree.
