Move buffers between DDR, OCM and BRAM, maintain cache coherence and place ELF sections in the correct memory.
DMA moves data while the processor can do other work. Evaluate setup, cache maintenance, and completion overhead rather than bus throughput alone.
The proposed benchmark copies 4096-word blocks through these paths:
| Source | Destination | Boundary crossed |
|---|---|---|
| DDR | DDR | PS memory |
| BRAM | BRAM | PL memory |
| DDR | BRAM | PS to PL |
| BRAM | DDR | PL to PS |
TTC measures ticks. Convert them using its clock and prescaler and handle counter wraparound; they are not automatically CPU cycles. Compare every destination word after each copy.
for (u32 i = 0; i < word_count; i++) {
source[i] = 0x10000000U + i;
destination[i] = 0U;
}
Xil_DCacheFlushRange((UINTPTR)source, word_count * sizeof(u32));
Xil_DCacheFlushRange((UINTPTR)destination, word_count * sizeof(u32));
start_dma(source, destination, word_count);
wait_for_dma_done();

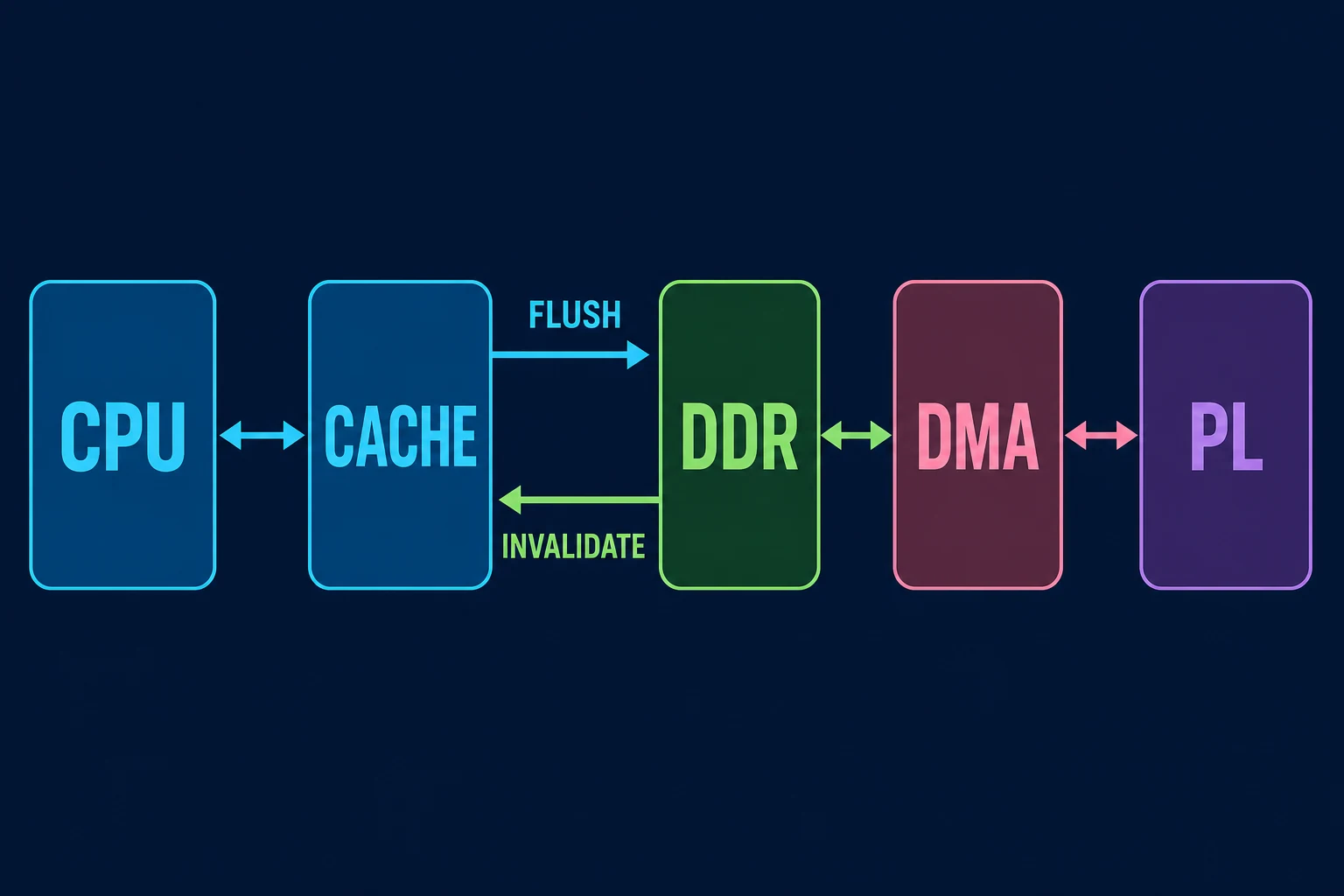

Xil_DCacheInvalidateRange((UINTPTR)destination, word_count * sizeof(u32));The CPU wrote both buffers. Cleaning them removes dirty cache state before DMA. After completion, destination invalidation makes later reads fetch fresh data.
Implement start_dma and wait_for_dma_done for the controller: PL330/XDmaPs on Zynq-7000, or ZDMA/XZDma in an appropriate MPSoC design. Include error handling and bounded waiting.
| DMA operation | CPU action |
|---|---|
| DMA reads CPU-produced data | Clean or flush the source |
| DMA writes CPU-consumed data | Deal with dirty lines before DMA, then invalidate after completion |
| Coherent DMA path | Use correct memory attributes and coherent port |
Buffers need aligned, dedicated cache lines. The CPU must not modify them during transfer. Maintenance must cover all touched lines; sharing endpoint lines with neighboring data risks corruption.
Disabling caches can isolate a fault but changes performance substantially. Establish a correct cache policy afterward rather than retaining the workaround.
Respect controller and bus alignment; unaligned access may need a specific mode. Distinguish C address, physical DMA address, and AXI-master-visible address. They often coincide in simple standalone code but not necessarily under Linux with an MMU.
| Section | Contents |
|---|---|
.text | Instructions |
.rodata | Read-only constants |
.data | Initialized variables |
.bss | Zero-initialized storage |
| heap | Dynamic allocation |
| stack | Local variables and call context |
A linker script maps sections to memory regions. This excerpt illustrates main code in DDR and a fast handler in OCM:
MEMORY
{
psu_ddr : ORIGIN = 0x00100000, LENGTH = 0x1FF00000
psu_ocm : ORIGIN = 0xFFFC0000, LENGTH = 0x00040000
}
SECTIONS
{
.text : { *(.text*) } > psu_ddr
.fast_isr : { *(.fast_isr*) } > psu_ocm
}It is not a complete script. Retain required startup, data, heap, and stack sections. Proposed addresses must be accessible and initialized on the target.
void __attribute__((section(".fast_isr"))) dma_isr(void *ref)
{
dma_done = 1U;
}The attribute places this function in .fast_isr. It records completion; a real handler must also acknowledge the DMA source as required.
Include configuration, maintenance, and waiting. For a few words, DMA overhead can exceed CPU copying; larger repeated blocks may benefit. Repeat measurements, check timer frequency, and keep UART output outside the timed region.
UG585 describes Zynq-7000 DMA and memory; the AXI DMA driver covers a DMA in PL.
